ionode4
Mission-critical cloud-to-edge audio integration device
AVAILABLE TO ORDER
The ionode4 is an audio integration device built for applications where security, safety, and reliability are essential. It provides 4 audio inputs with 24V DC phantom power, 4 audio outputs, 4 control inputs, and 4 control outputs (relay) in a compact 1U half-rack form factor.
Built on top of the nnounce™ secure and scalable audio platform, the ionode4 can communicate over the network using all contemporary audio standards such as AES67, RTP, and VoIP. It can add an extra encryption layer to prevent eavesdropping. Compatible with Q-SYS and Bosch PRAESENSA, the device has powerful built-in signal processing capabilities exceeding those of dedicated signal processors and is equipped with a neural network accelerator for audio applications. It supports IPv6 for modern network compatibility and enhanced security.
Connect your audio infrastructure using high-performance audio inputs and outputs (4 audio inputs, 4 audio outputs)
Integrate & control using control inputs and relay outputs
Wire two devices in parallel for high availability
Process audio using powerful built-in processing engine
Hardware neural engine for audio applications
Keep your audio streams private by adding encryption to industry standard audio protocols such as AES67
Trust your audio devices to follow the latest IT and physical security standards, with IPv6 support for modern network compatibility
Compatible with Q-SYS and Bosch PRAESENSA ecosystems
Practical compact size 1U half-rack width
REAR VIEW
Key highlights
Neural engine
Hardware neural engine for applications such as gunshot detection and speech to text.
Third-party compatibility
Can be used as part of Q-SYS and Bosch PRAESENSA paging system.
Security is a top priority
Can communicate over the network using all contemporary audio standards such as AES67, RTP or VoIP. It can add an extra encryption layer to prevent eavesdropping by malicious actors.
Connect with cloud
A secure–enclave element built in enables secure connectivity to all major industry cloud providers. The device can be used with Simpleway CX cloud out of box.
| Product | ionode4 |
| Order ID | WA001 |
| Description | Secure audio integration device with built–in processing and I/O |
| Audio | AD Converter: 24 Bit @ 48 kHz 125 dB–A Dynamic Range – 0.00x % THD+N Max input level 18 dBU / 6.16 Vrms Crosstalk (1 kHz) – 60 dB Input impedance 20 kΩ balanced CMRR 60 dB DA Converter: 24 Bit @ 48 kHz 115 dB–A Dynamic Range – 0.00x % THD+N Max output level 7.6 Vrms 2.5 ms end–to–end latency AES67 network audio (with optional encryption) Phantom power: +24V DC per balanced input |
| Connectivity | 4 x Balanced input channels 4 x Balanced output channels Audio input and Output connectors can be wired in redundant wiring with standby unit 4 x Supervised control inputs (0–12 V input tolerance, 12 Vref) 4 x Control outputs (Relay NC, NO, COM pins) 1 x USB–C 2 x LAN RJ45 1000 Mbs with PoE |
| DSP | Built–in web–based graphical DSP pipeline designer 60+ Component library Extended precision fixed point processing API library |
| User Interface | Front panel diagnostic LEDs Rear panel diagnostic LEDs Web–based interface Cloud–connected |
| Security | Secure boot Encrypted firmware Tamper sensing Secure enclave chip AES256–GCM encryption for AES67 |
| Compatibility | Q–SYS, Bosch PRAESENSA |
| Storage | Onboard microSD card slot, included 64 GB card |
| Environmental | Operating temperature range 32 °F – 122 °F (0 °C – +50 °C) Storage temperature range 14 °F to 140 °F (–10 °C – +60 °C) |
| Power | 12 V DC secure jack IEEE 802.3af power over Ethernet (PoE) |

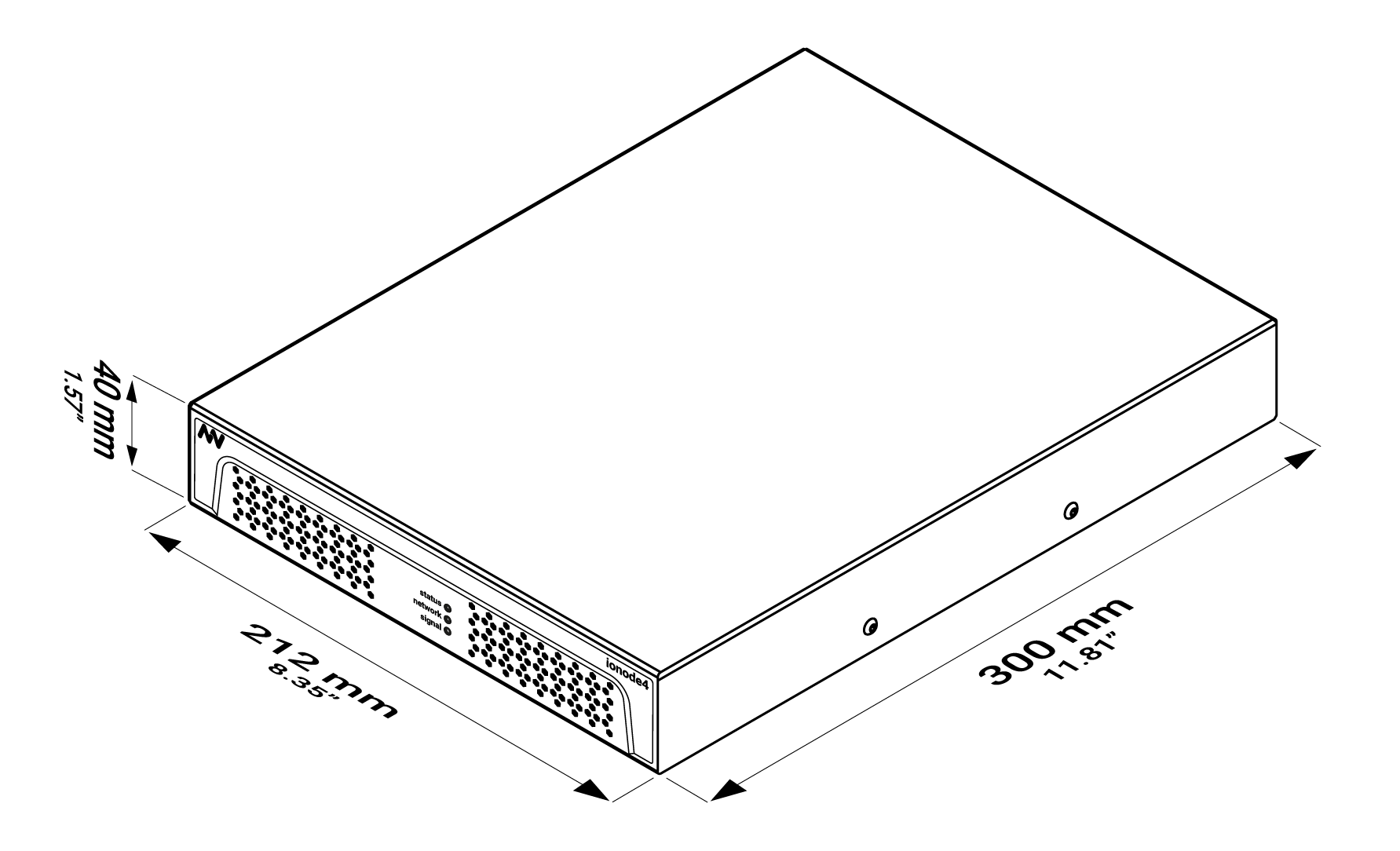

| Dimensions | 212 mm (8 11/32”) (W) x 300 mm (11 13/16”) (D) x 40 mm (1 37/64”) (H) 1 510 g without mounting kit |
| Accessories | Mounting kit |
| RAMS | MTBF > 150 000 hours MTTR < 4 hours |
Specifications
Visit the Download Center for product resources
Ideal to combine with our flexible and secure amplifier ampnode4
Bridging the Gap Between Sound and Vision
While nnounce devices are fully integratable with other PA ecosystems, such as Q-SYS, their true power emerges when perfectly paired with Simpleway’s digital signage and public address cloud software, creating a uniquely cohesive and effective communication experience.
Retail, hospitality, educational, healthcare sectors, warehouses, company campuses, and more can adopt the nnounce platform with Enterprise CX system, meeting diverse communication needs and empowering synchronized messaging across environments.
nnounce products paired with Airport CX elevate the passenger experience for airports of all sizes. Operators can instantly trigger announcements for specific flights or trips, with displays automatically updating to show accurate, real-time information, keeping travelers informed and enhancing their journey.
For ground public transport, including trains, ferries, and buses, the Transit CX platform unified with nnounce devices allows for robust and timely management of location-specific announcements and visual information updates throughout entire transportation networks.
